Evaluation Kit | NCV78343FULLGEVK

NCV78343 Kit with LED

产品
跳转至
概览 Evaluation/Development Tools

概览

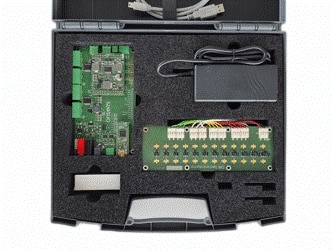

NCV78343FULLGEVK Evaluation Kit contains all necessary hardware and software to control the NCV78343 pixel controller from your PC. This version of evaluation kit is delivered in plastic case and is mainly intended for presentation purposes. Provided user-friendly software with Graphical User Interface (GUI) makes operation of this device easy. Supplied evaluation board provides quick access to all important signals and gives you the possibility to connect evaluation kit with your own application or with another NCV78343 evaluation board (NCV78343R1GEVB or NCV78343R1GEVB).


Evaluation kit content:

  • Up to 24 LED Pixels
  • Fully Controllable by the SW GUI via USB Cable
  • Supports Two Interfaces: CAN and M−LVDS
  • Supports Different System Architectures
  • Possibility to Connect More Pixel Controllers in a Chain
  • Wide Supply Voltage Range
  • Test Points for Important Signal
  • Single Side PCB Assembly
  • Optional BOOST−BUCK Convertor to Supply LEDs

Evaluation/Development Tools

产品

类型

Ref. Design

状态

Part Used

Reference Price

NCV78343FULLGEVK

NCV78343 Kit with LED

Evaluation Kit

No

Active

NCV78343DQ0R2G

$0.000000
